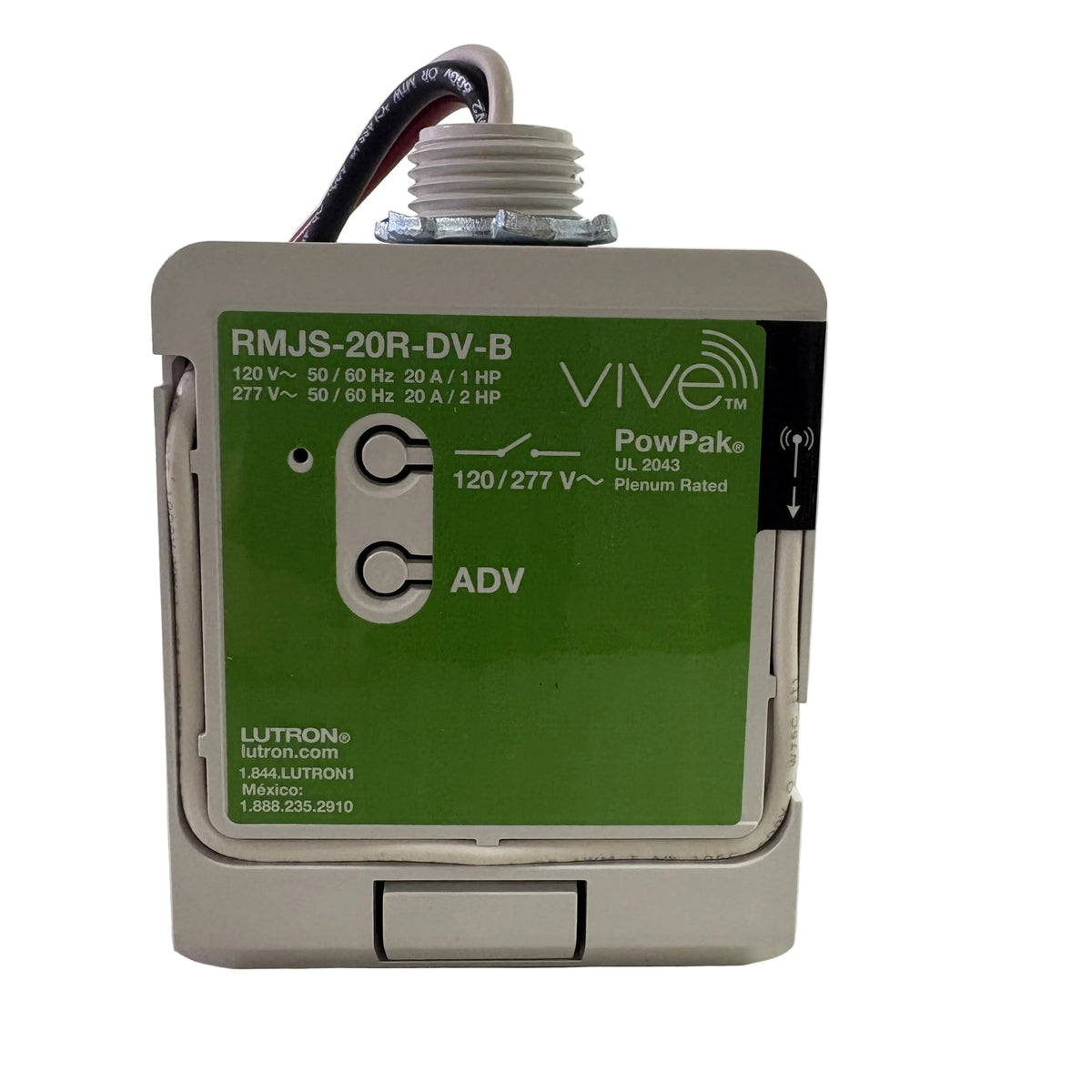

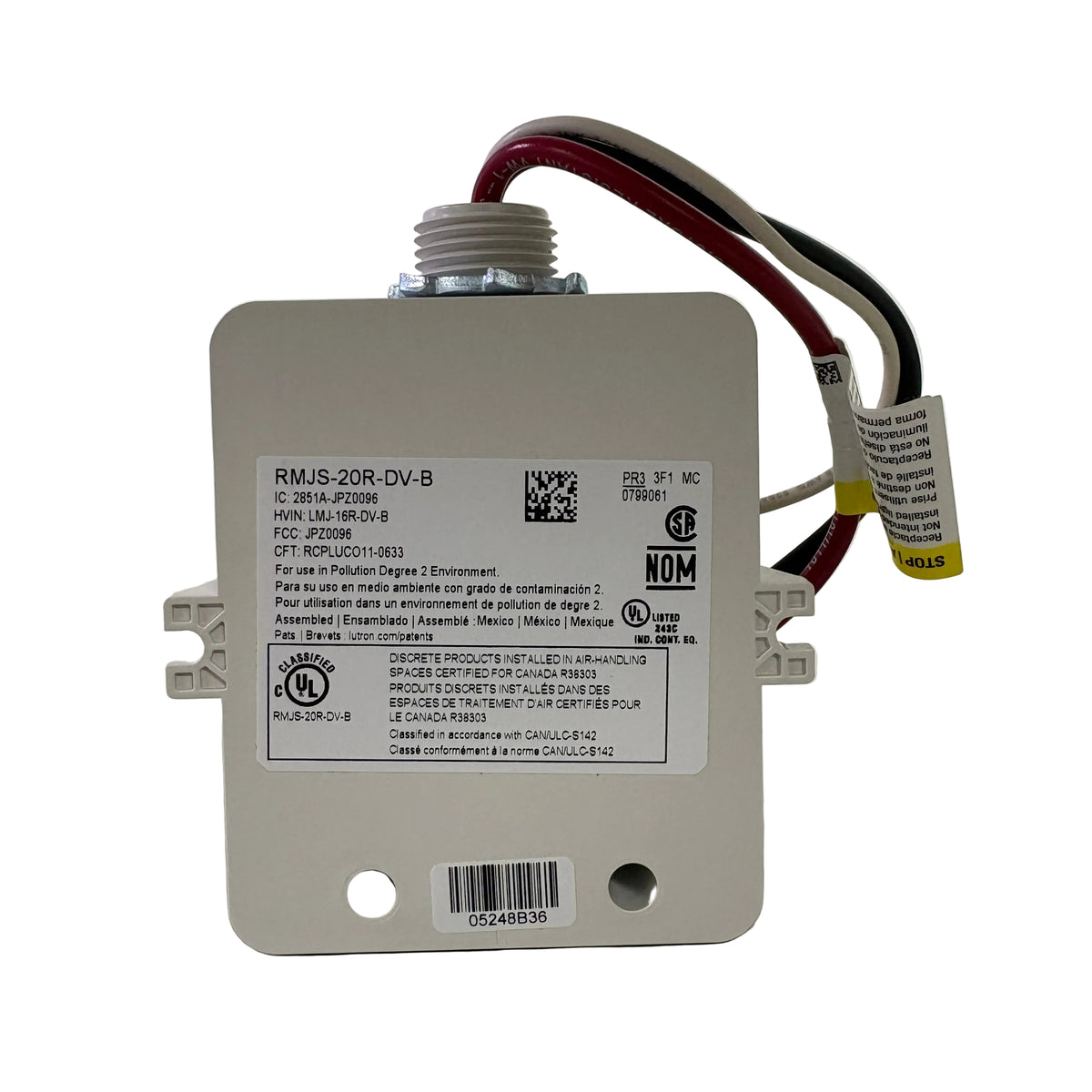

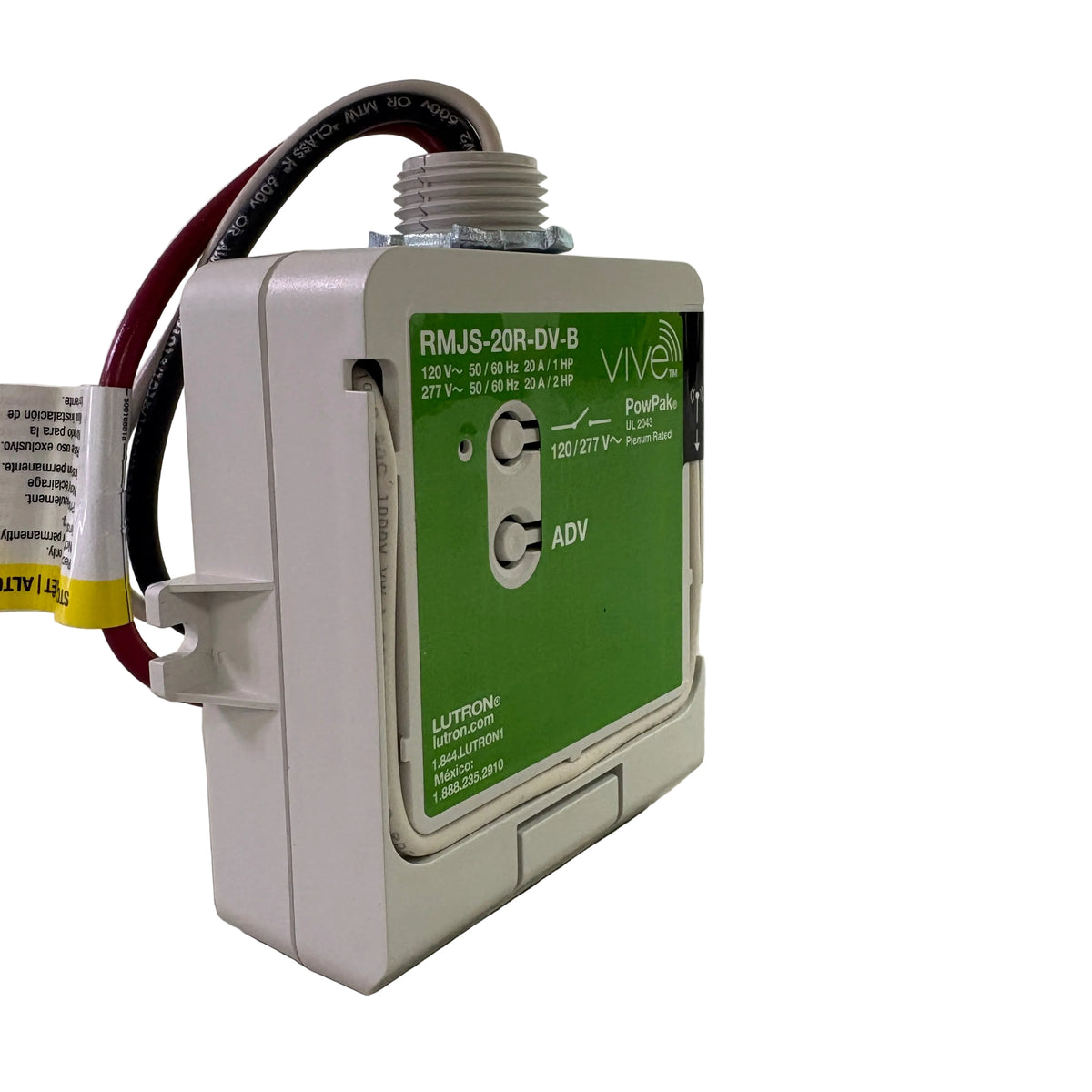

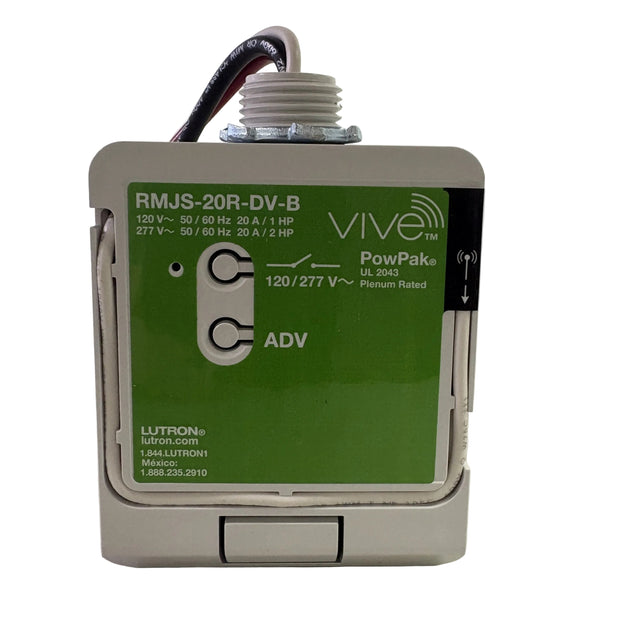

Lutron - RMJS-20R-DV-B - PowPak 20A Receptacle Control Relay Module 120/277V - NEW

The Lutron RMJS-20R-DV-B is a Vive PowPak 20A Receptacle Control Relay Module designed for wireless switching of 20A receptacles in 120/277 VAC applications. Using Lutron Clear Connect RF Technology, it receives commands from Pico remote controls and Radio Powr Savr occupancy/vacancy sensors — no dedicated wiring to control devices required.

Compatible with the Lutron Vive hub, setup is handled through any Wi-Fi enabled browser, and all connected Vive devices can be monitored and controlled from a single interface. Lutron's patented Softswitch technology prevents relay contact arcing, extending the module's service life in high-cycle applications.

Key Features

• Controls 20A receptacles — suitable for high-load switching applications
• Lutron Softswitch technology prevents arcing and extends relay life
• Receives wireless inputs from up to 10 Pico remote controls
• Receives wireless inputs from up to 10 Radio Powr Savr occupancy/vacancy sensors
• Optional low-voltage dry contact closure output for HVAC, VAV, and BMS integration
• Compatible with Lutron Vive hub for browser-based setup and monitoring
• Mounts to U.S. standard junction box via 1/2 in (12.7 mm) knockout
• Includes controlled outlet labels for code compliance
• RoHS Compliant

Technical Specifications

• Catalog Number: RMJS-20R-DV-B
• Manufacturer: Lutron Electronics
• Voltage Rating: 120–277 VAC
• Load Capacity: 20A receptacle switching
• RF Technology: Lutron Clear Connect
• Max Pico Remotes: 10
• Max Occupancy Sensors: 10
• Dry Contact Output: Optional low-voltage closure (HVAC/VAV integration)
• Mounting: U.S. standard junction box, 1/2 in knockout
• Certifications: UL Listed, RoHS Compliant
• Condition: New
